Flavor Blending System: Code Name IBS

Flavor Blending Beverage System Description

IBS was a system for producing a wide variety of dry flavor concentrates. Products consisted of flavors added to many retail products found on your local supermarket shelves and retail outlets.

System required the blending of food grade powders to create specialized flavors per this customers specifications. System specification require bulk ingredients be delivered from a silo; while smaller minor ingredients be delivered from 50lbs bag. Bulk powders are being delivered via dilute phase pneumatic systems that are accurately scaled above mixing tanks.

This flavor blending system was controlled via automated PLC system including operating interfaces and safety interlocks.

Project Details

Code Name: IBS
Date: 10/2013
Skills Electric, Mechanical, 3d Modeling, Process Engineering, Project Management, Millwright Services

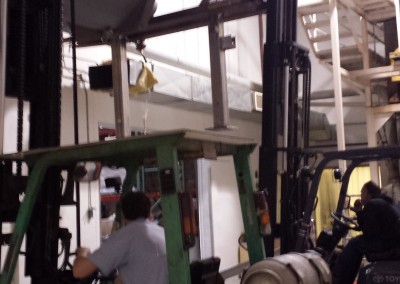

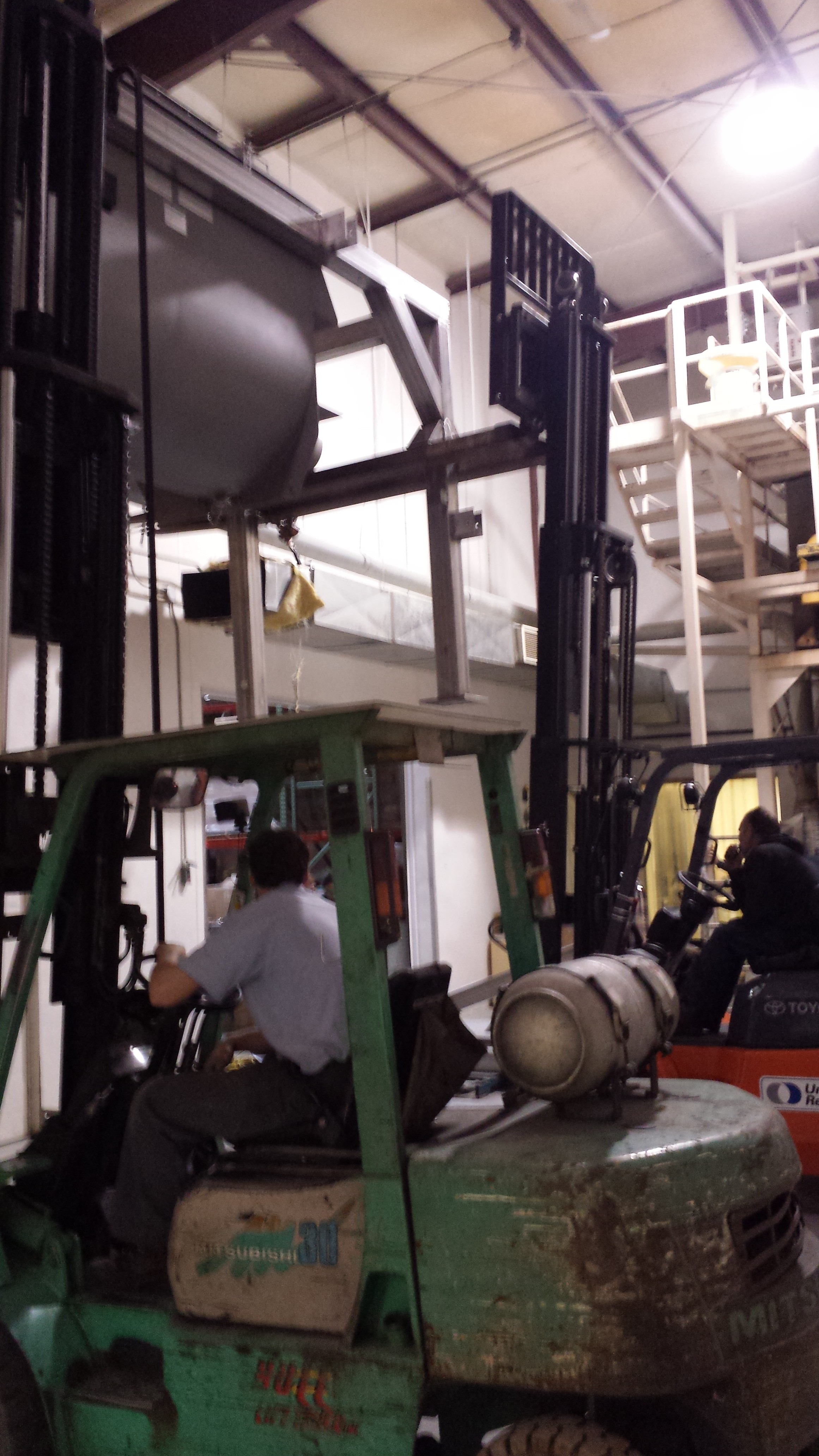

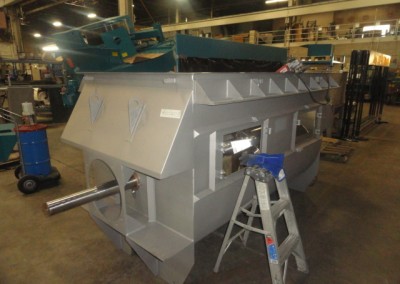

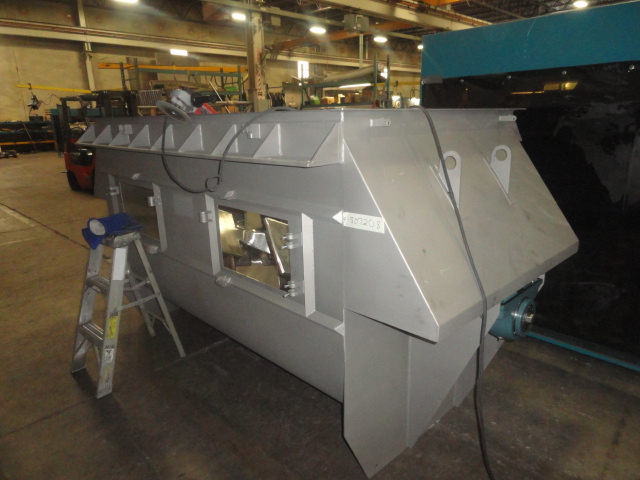

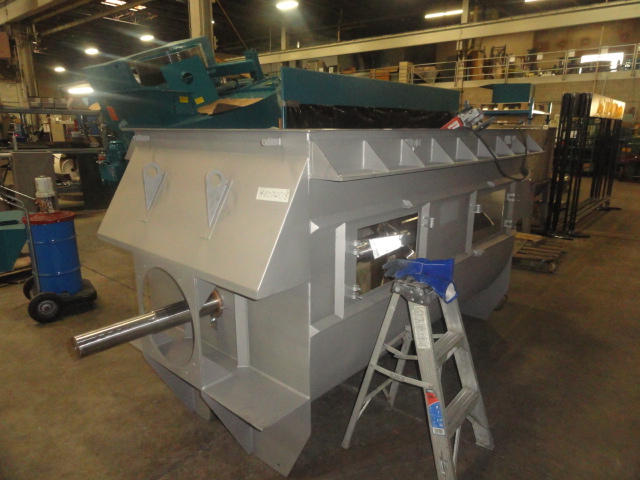

Flavor Blending Mixer Installation

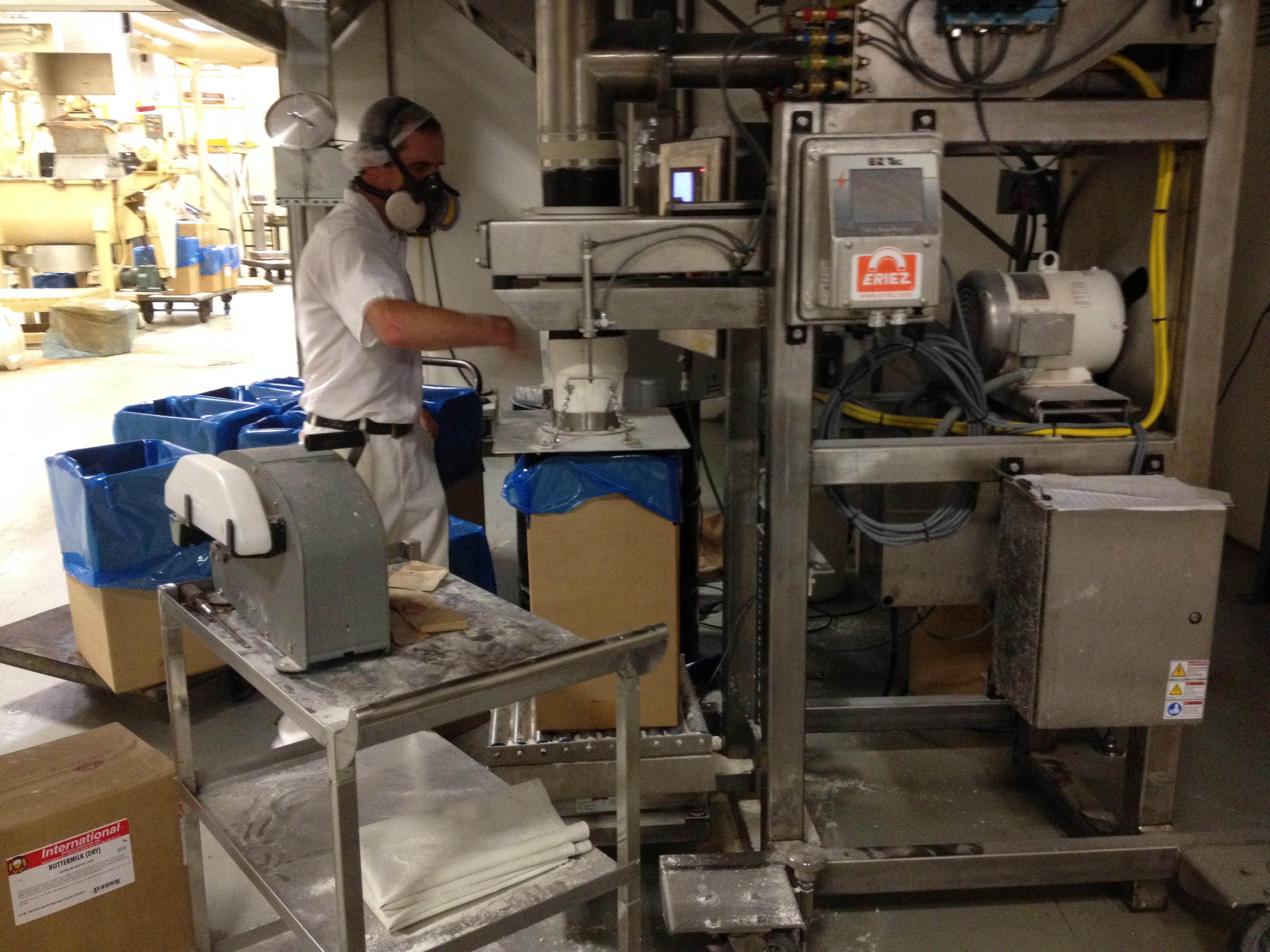

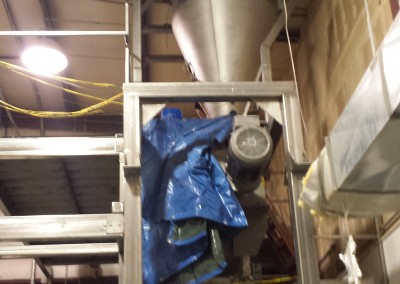

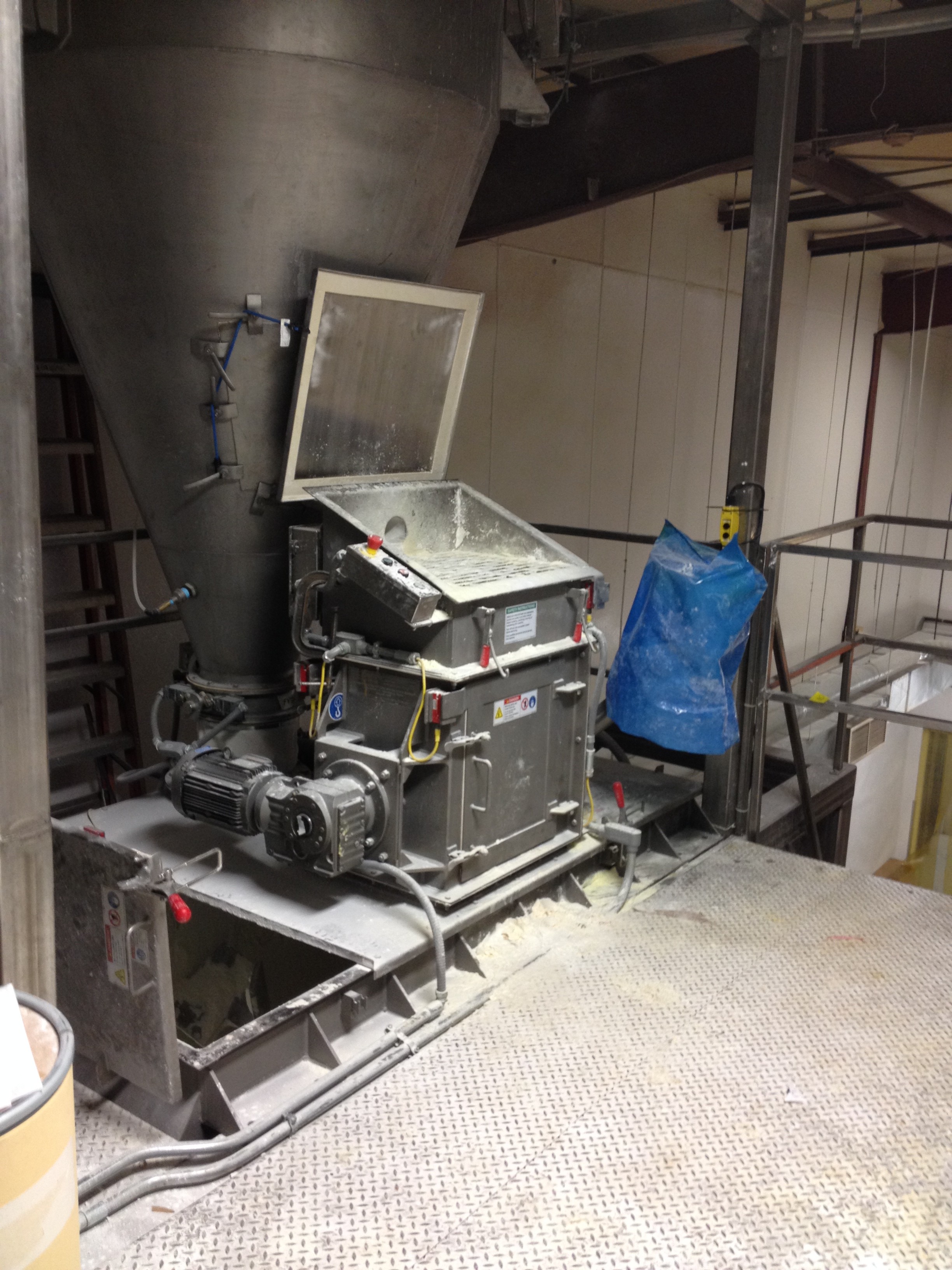

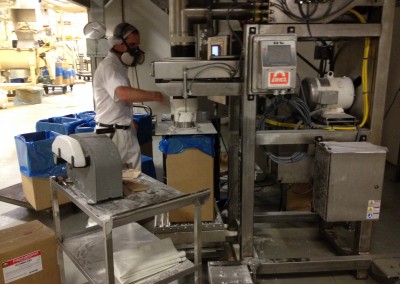

Flavor Blending Operations

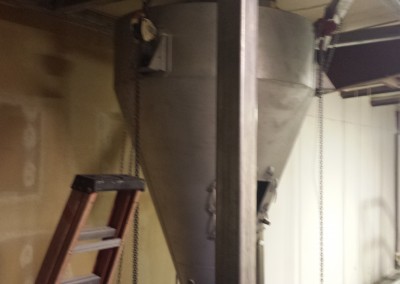

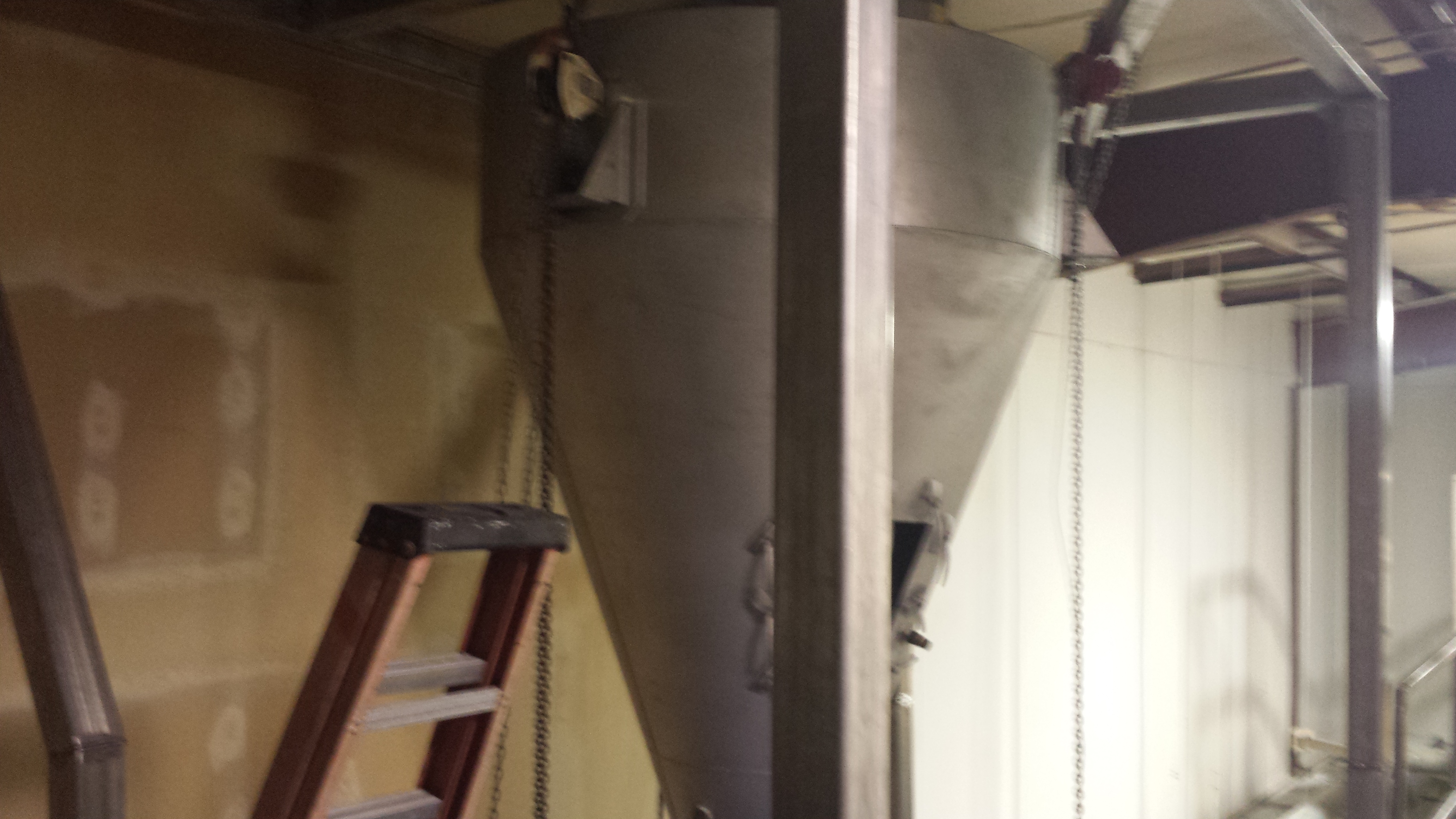

Dextrose Receiving Hopper Installation
