Flour Rail Car Unload System: Code Name ABS
Flour Rail Car Unload System Description
ABS was a system designed to receive and deliver bulk flour from a rail car. System utilizes a dilute phase convey system to effectively unload and deliver from the rail station to the flour holding silos. Bulk flour is unloaded from the rail car and delivered System required an intermediate holding vessel due to the convey distance to deliver to separate bulk silos. All silos were converted to Radar Level Sensors and an automated electrical system determined which silo would be the receiving silo.
This Flour Rail Unload was controlled via automated PLC system including operating interfaces and safety interlocks.
Project Details
Code Name: ABS
Date: 5/2010
Skills Electric, Mechanical, Sanitary, 3d Modeling, Process Engineering, Project Management, Millwright Services

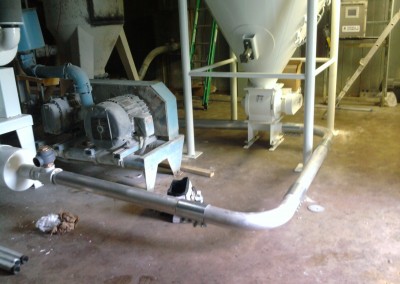

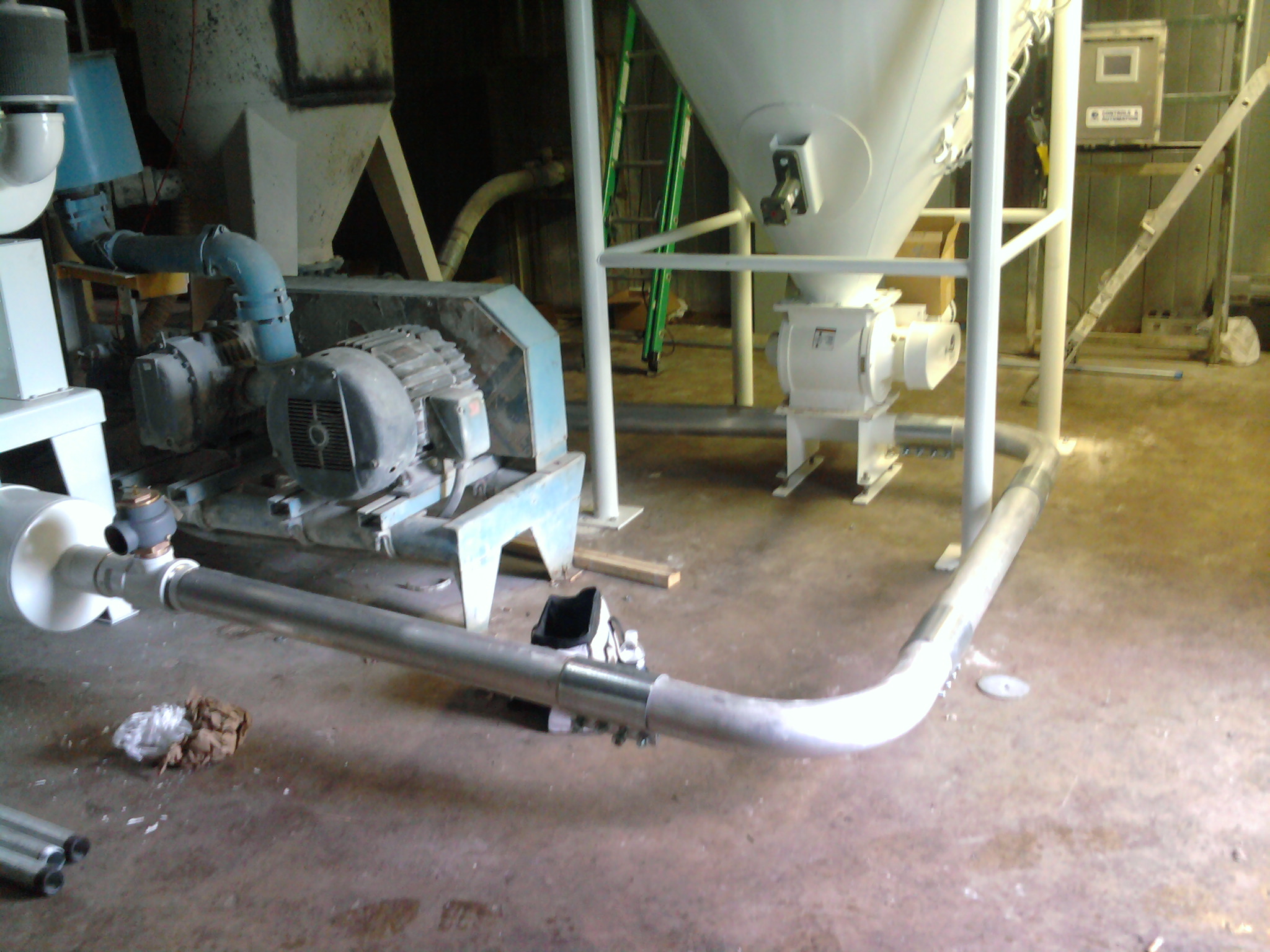

Flour Delivery Blower
Flour Delivery Blower

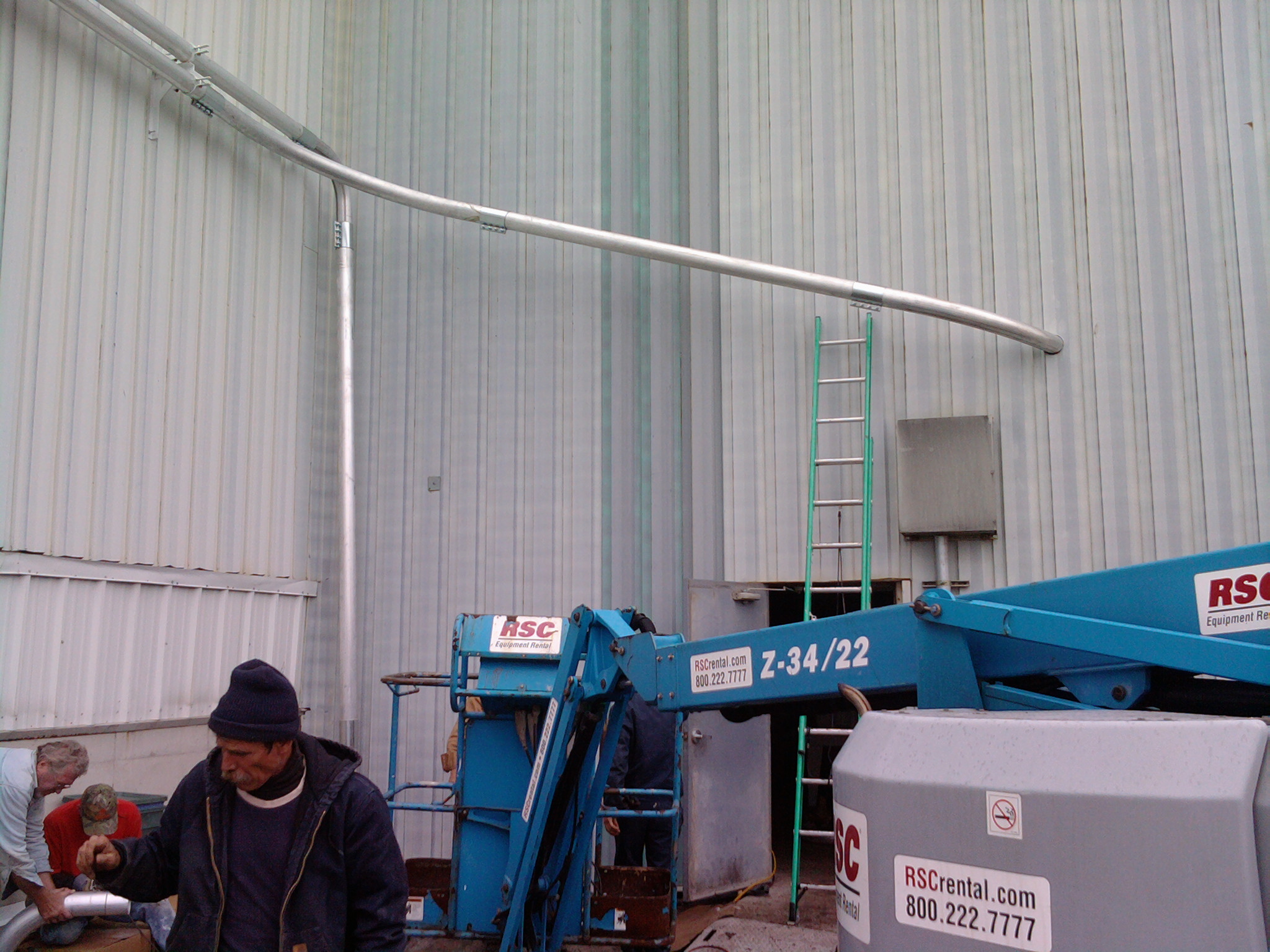

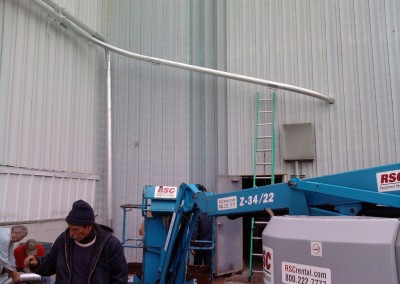

Flour Piping Installation
Flour Piping Installation

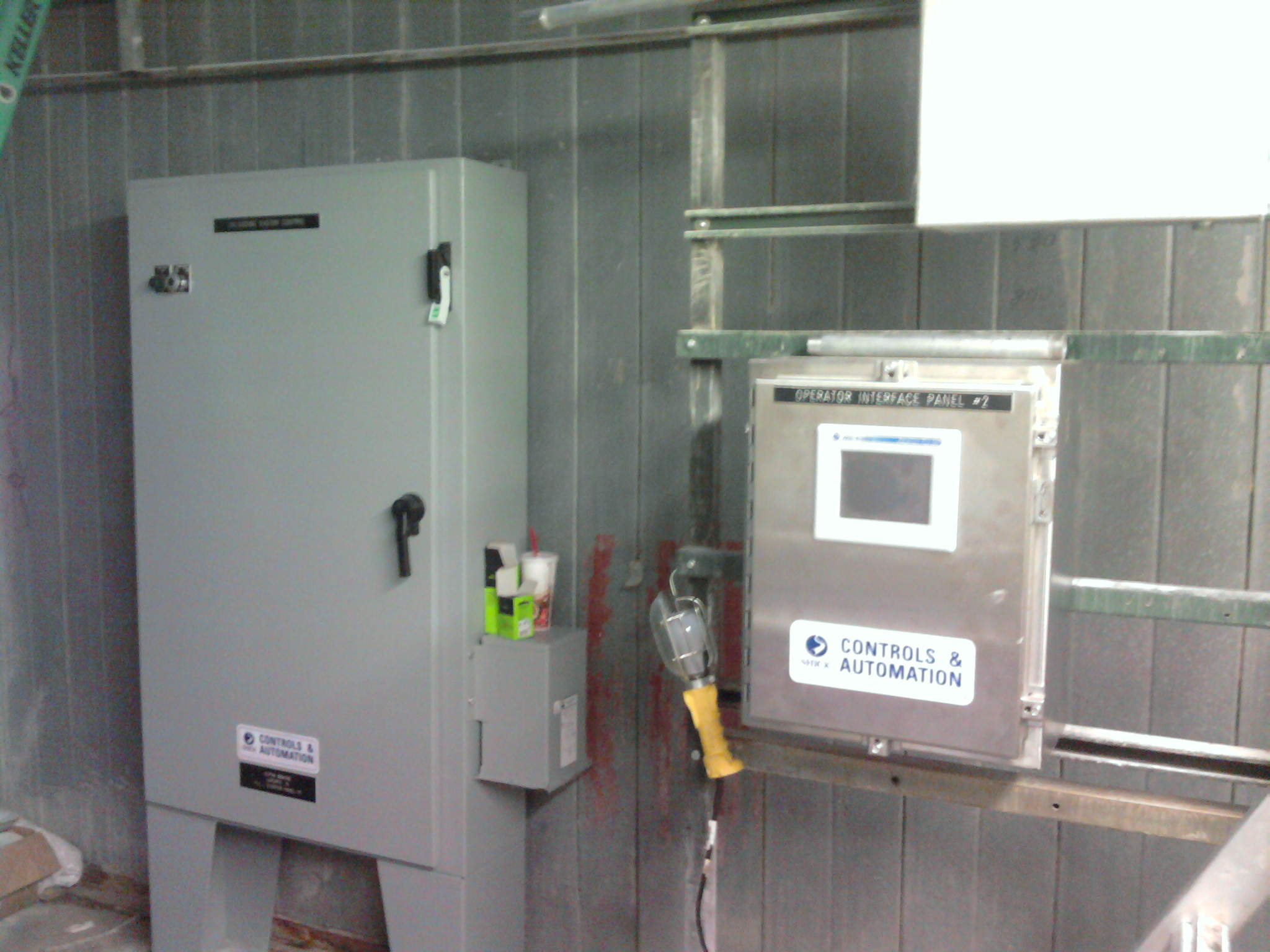

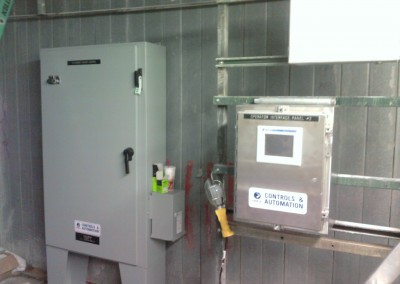

Flour Rail Unload Controls
Flour Rail Unload Controls

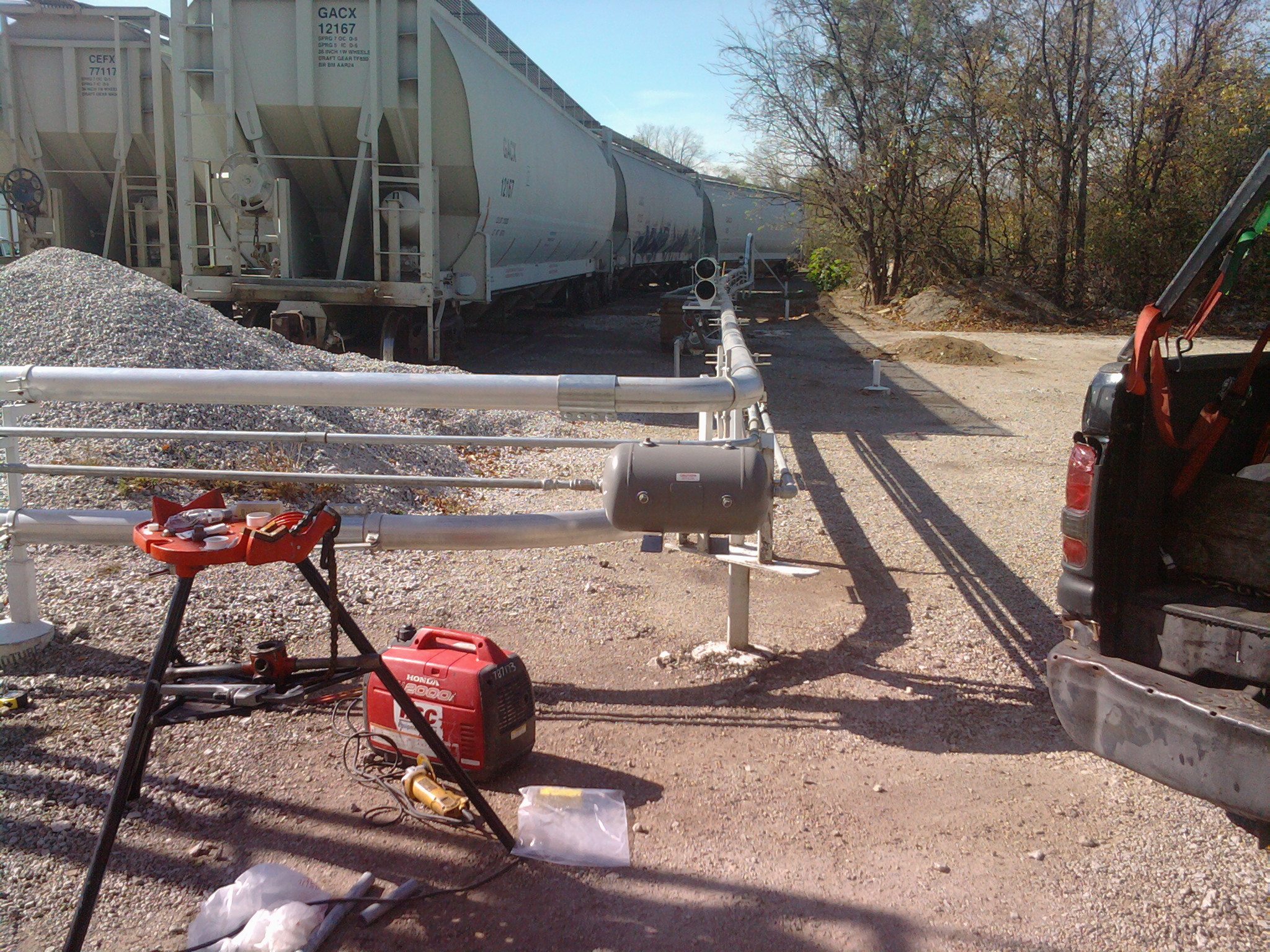

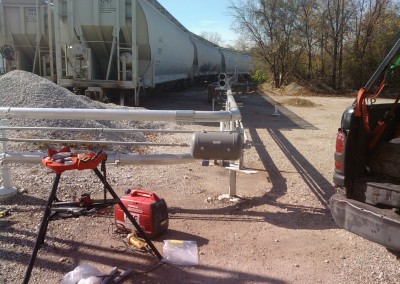

Flour Rail Unload Installation2
Flour Rail Unload Installation

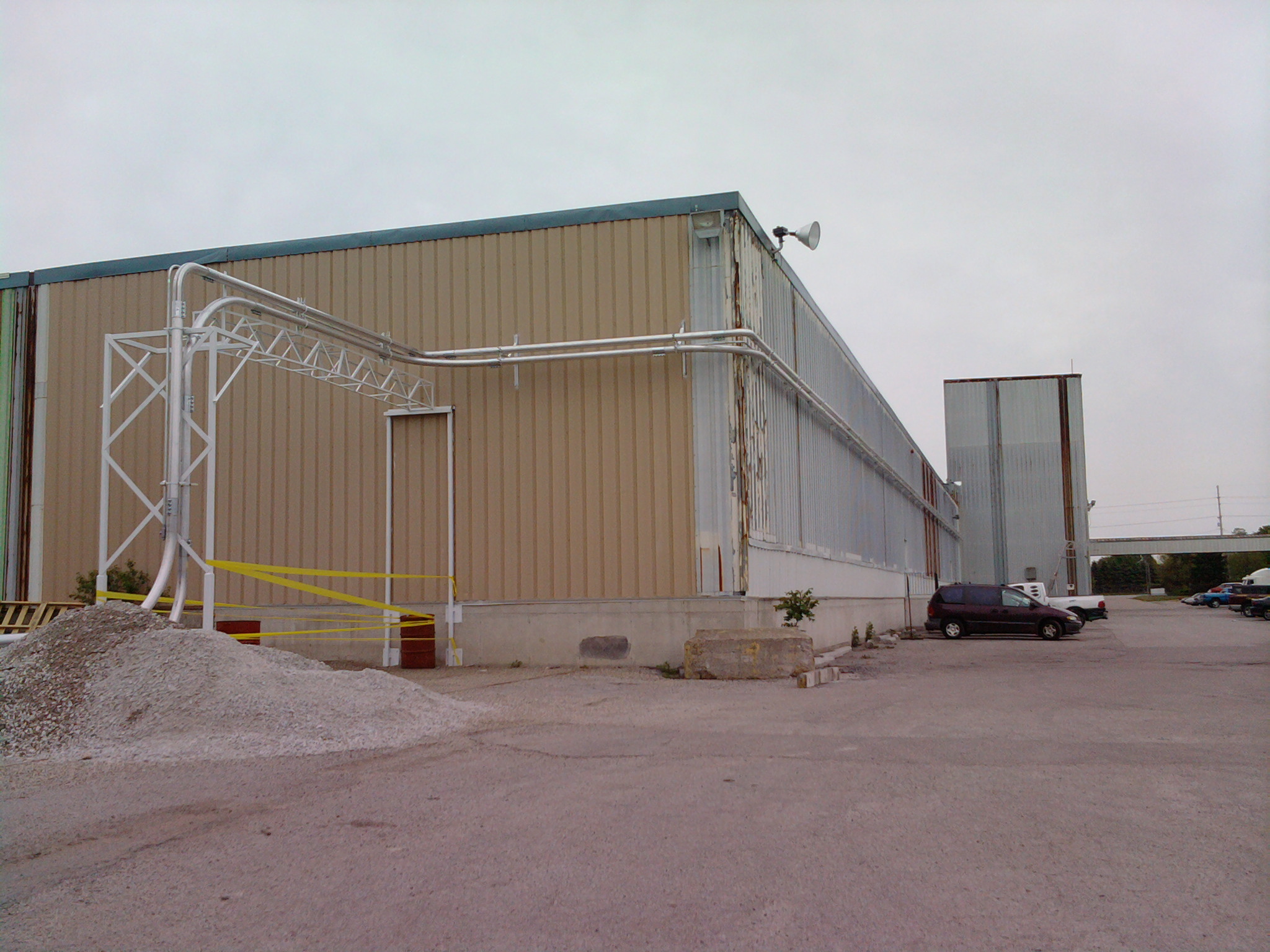

Flour Rail Unload Pipe Support
Flour Rail Unload Pipe Support

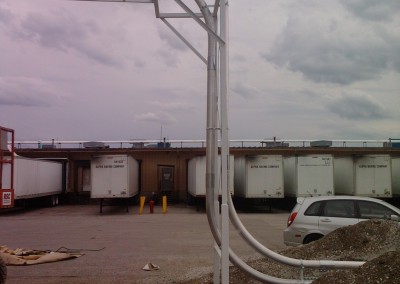

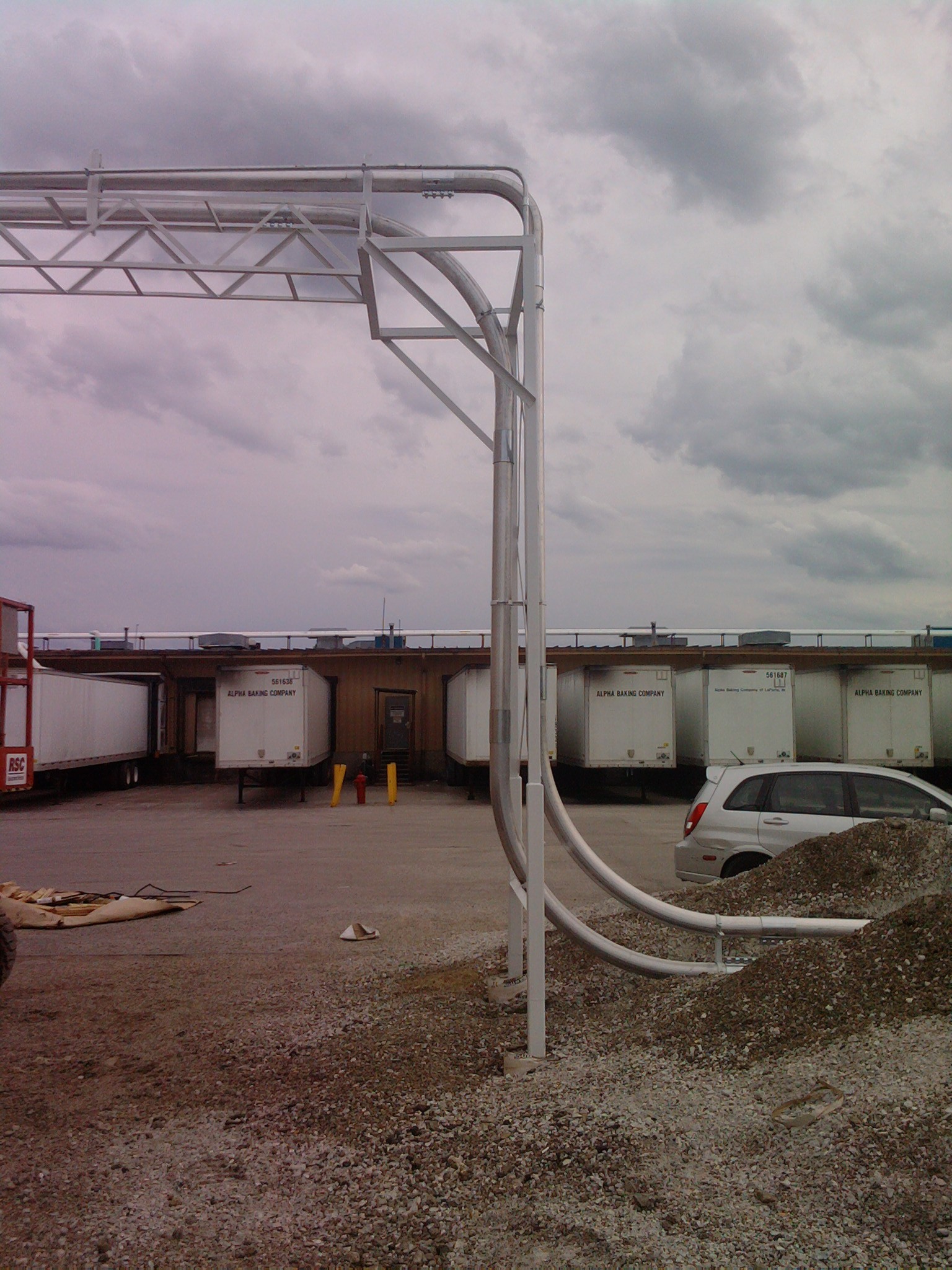

Flour Rail Unload Piping
Flour Rail Unload Piping

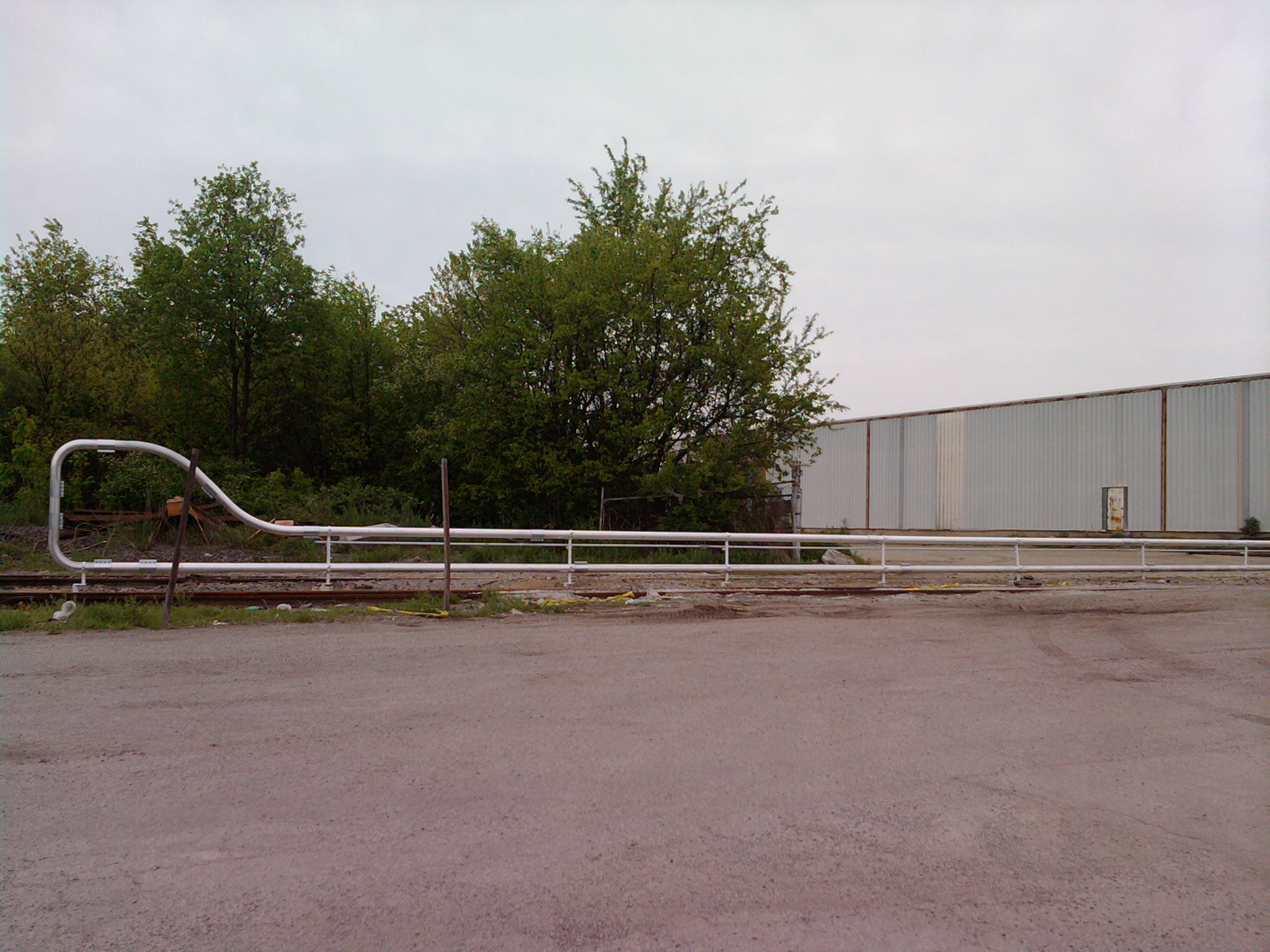

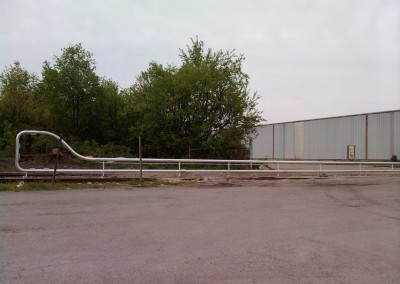

Flour Rail Unload System
Flour Rail Unload System

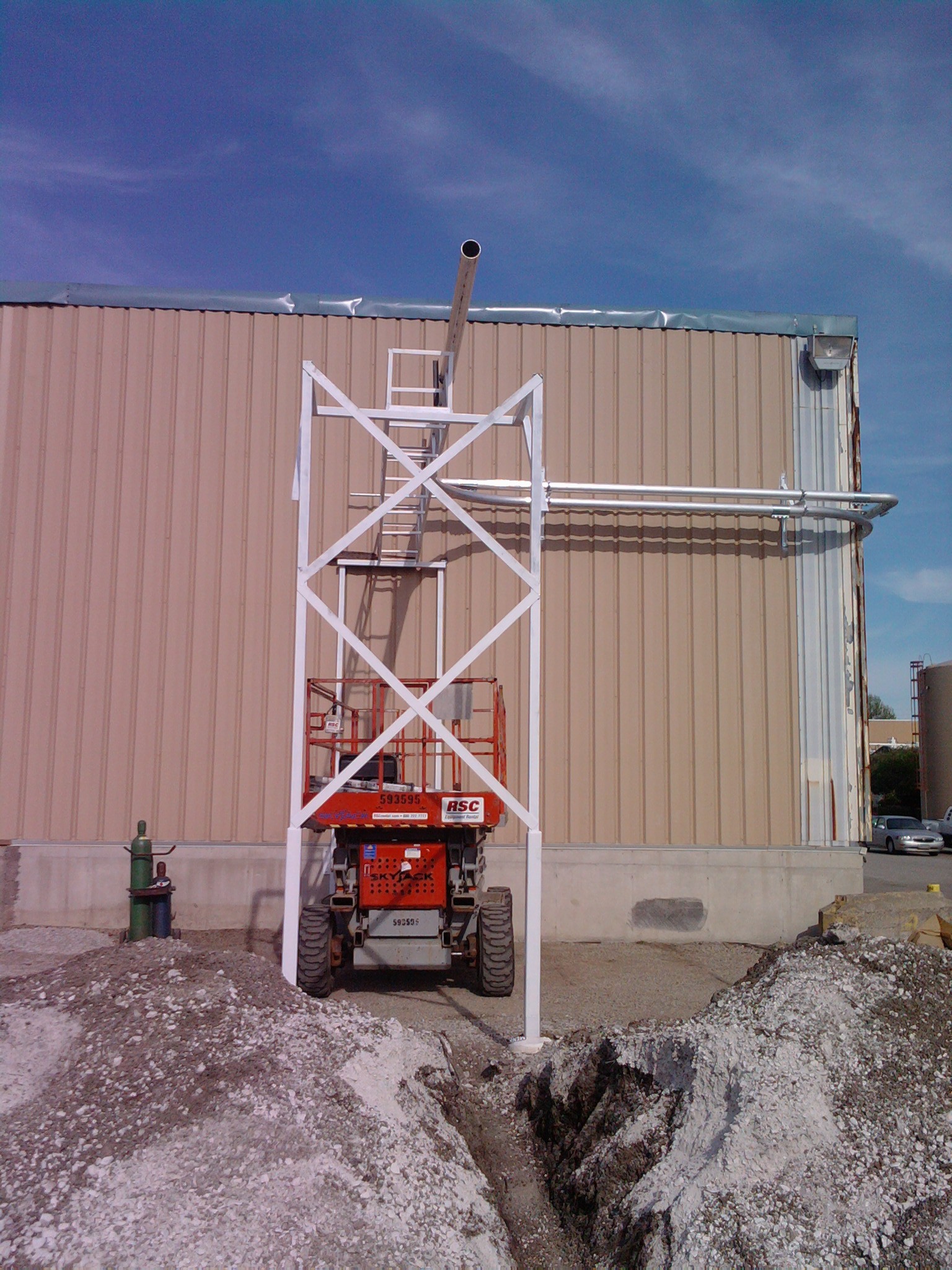

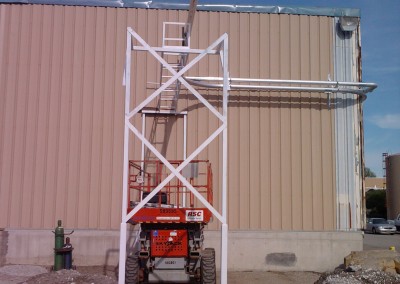

Flour Support Bridge
Flour Support Bridge

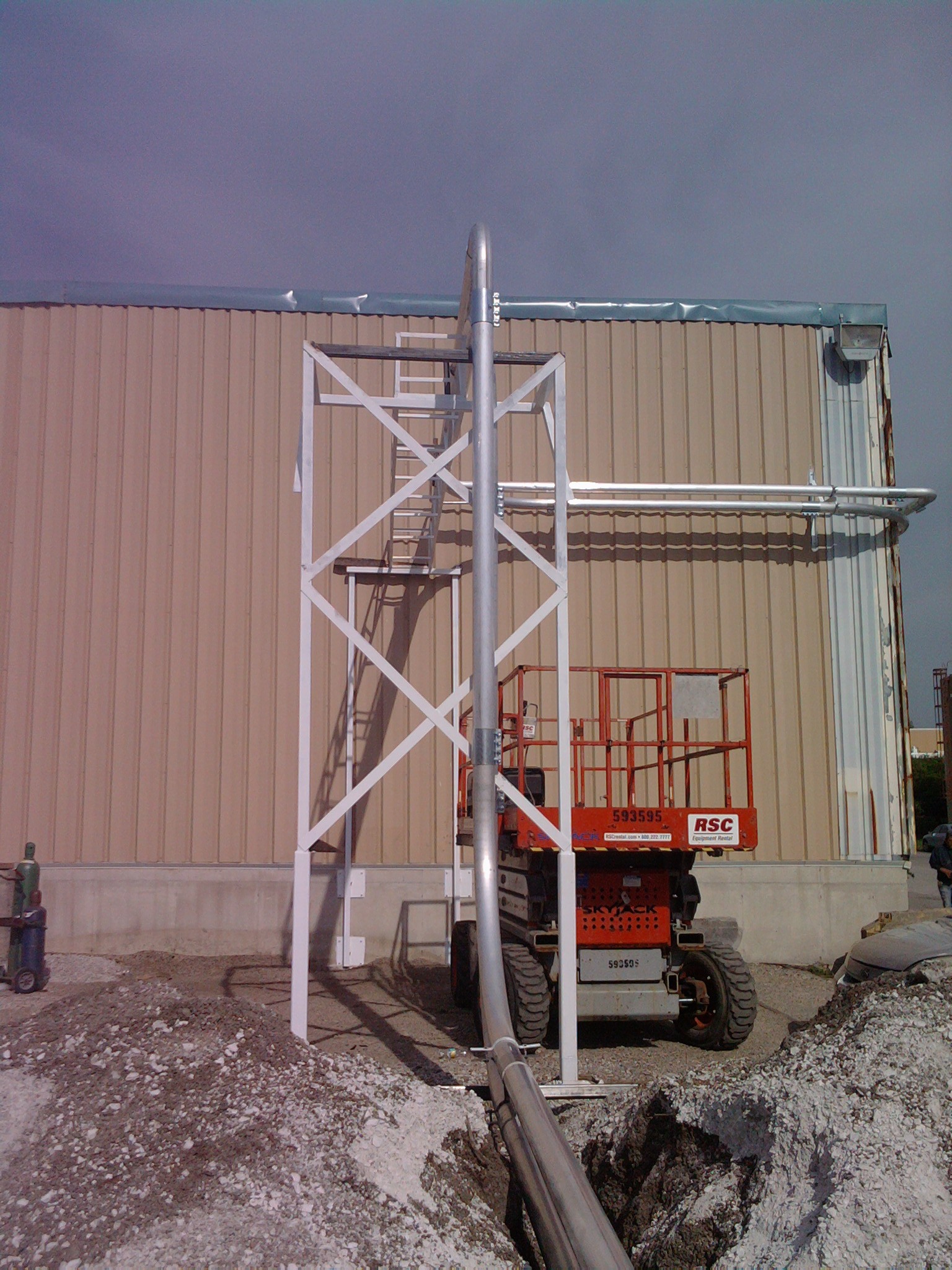

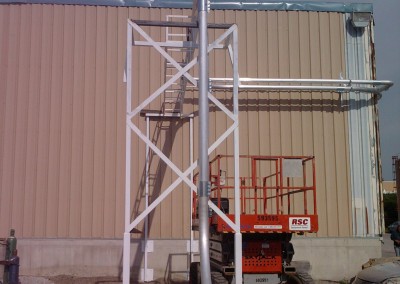

Flour Support Bridge2
Flour Support Bridge

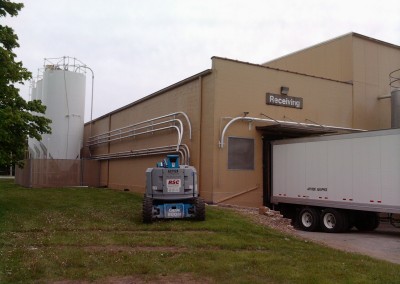

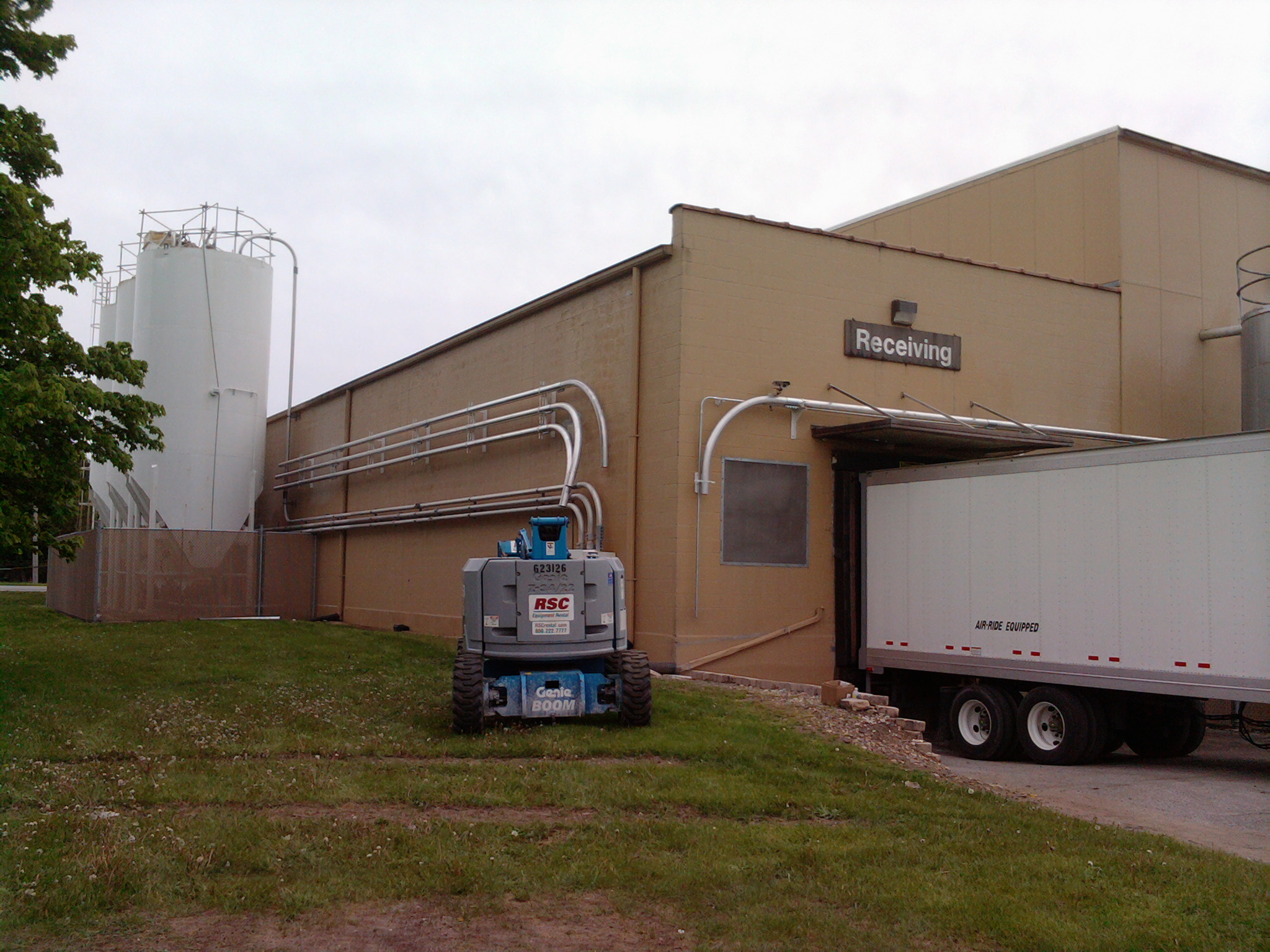

Flour Truck Unload
Flour Truck Unload

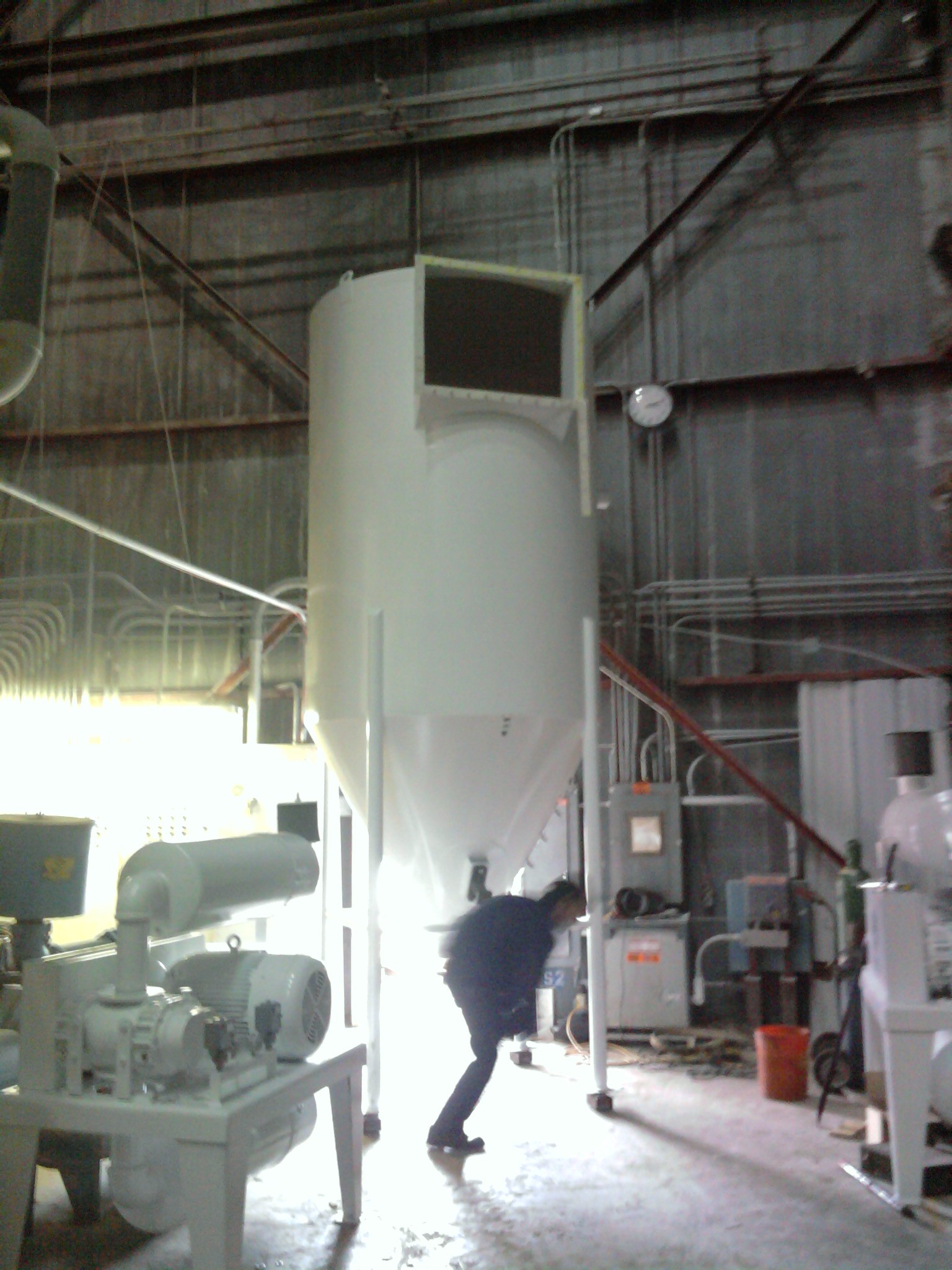

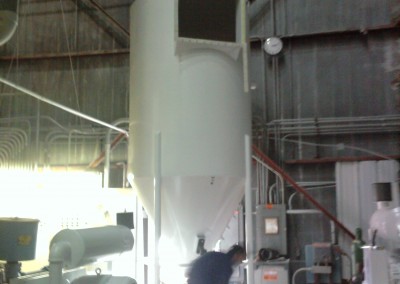

Flour Use Bin
Flour Use Bin
